Trotter Specifications

There are four Trotter models available

  • TR1200 model 12" seat - maximum weight limit 5 stone, 34 kg
  • TR1400 model 14" seat - maximum weight limit 7 stone, 45 kg
  • TR1600 model 16" seat - maximum weight limit 12 stone, 77 kg
  • TR1800 model 18" seat - maximum weight limit 18 stone, 113.4 kg

specifications below are for the TR1400 14" model

The Trotter is 'crash tested' it is Approved for use in a vehicle tested to ANSI standard 7176/19, subject to the relevant optional accessories being used.

The Trotter is CE marked and has been tested by the factory to ISO 7176/8

The Trotter has flexible plastic non pneumatic wheels which operate well on smooth surfaces not rough ground.

The Seat can be configured to suit the occupant and has adjustable seat angle.

The seat fabrics can be wipe cleaned with a sponge.

The Trotter comes with a Lifetime Warranty frame & cross braces (see conditions), one year other items, excludes wear & tear to tyres and grips.

Whilst the Trotter may be used for someone with special needs the seat may be unsuitable if they require postural management support, if in doubt please seek the advice of your physiotherapist.

The Seat can be adjusted to change both the seat base and seat back angle, e.g.

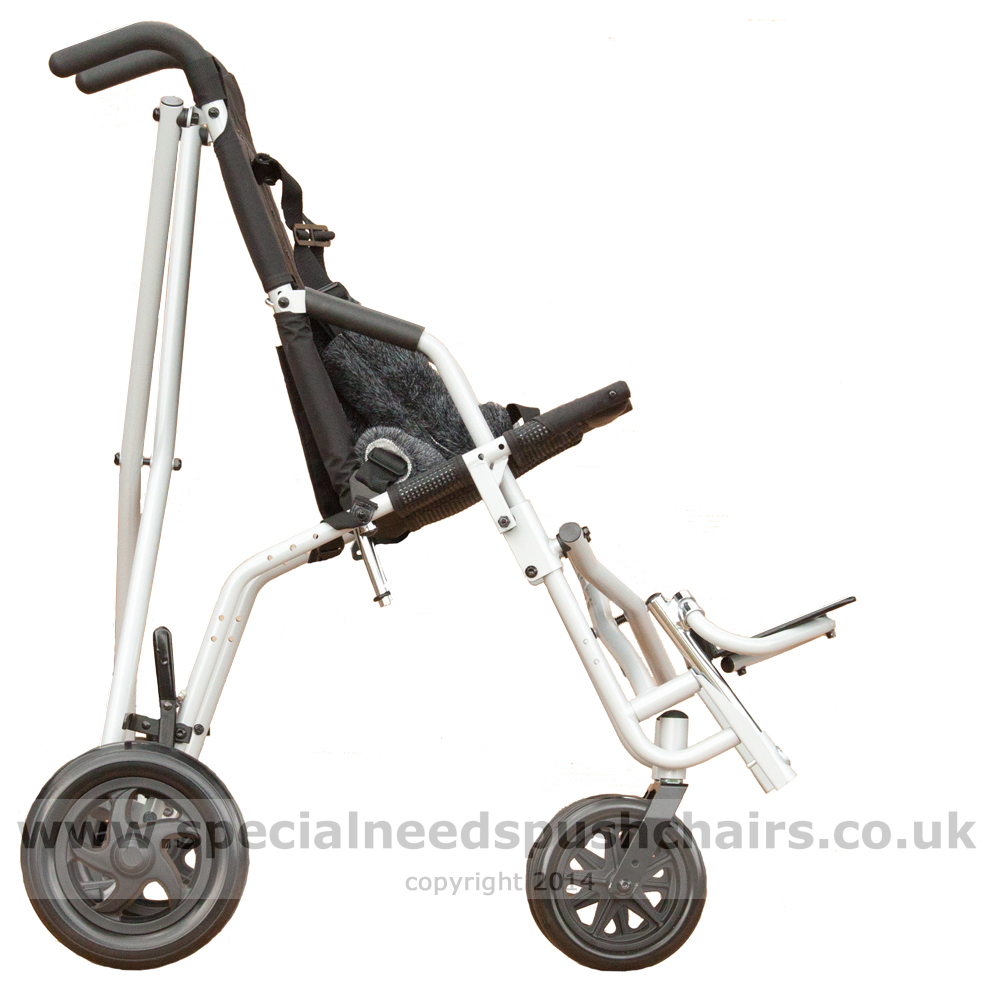

Seat Adjusted for Maximum Recline



Scroll down page for detailed dimensions

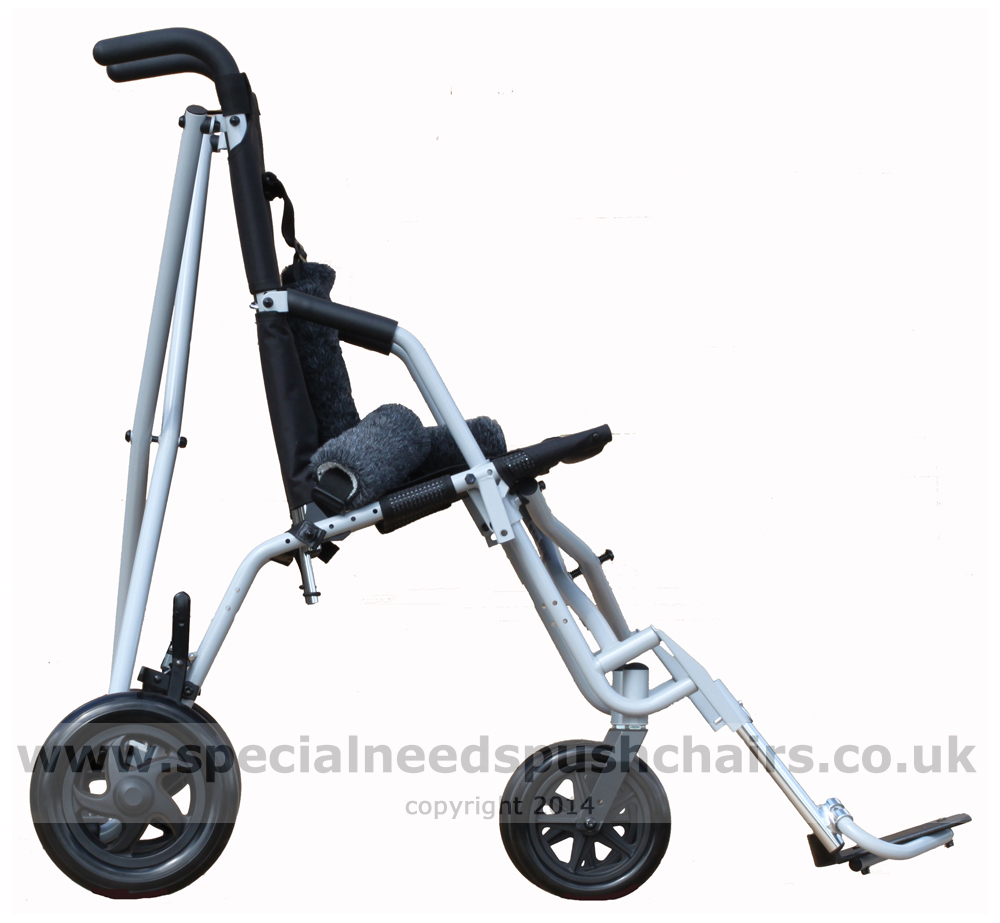

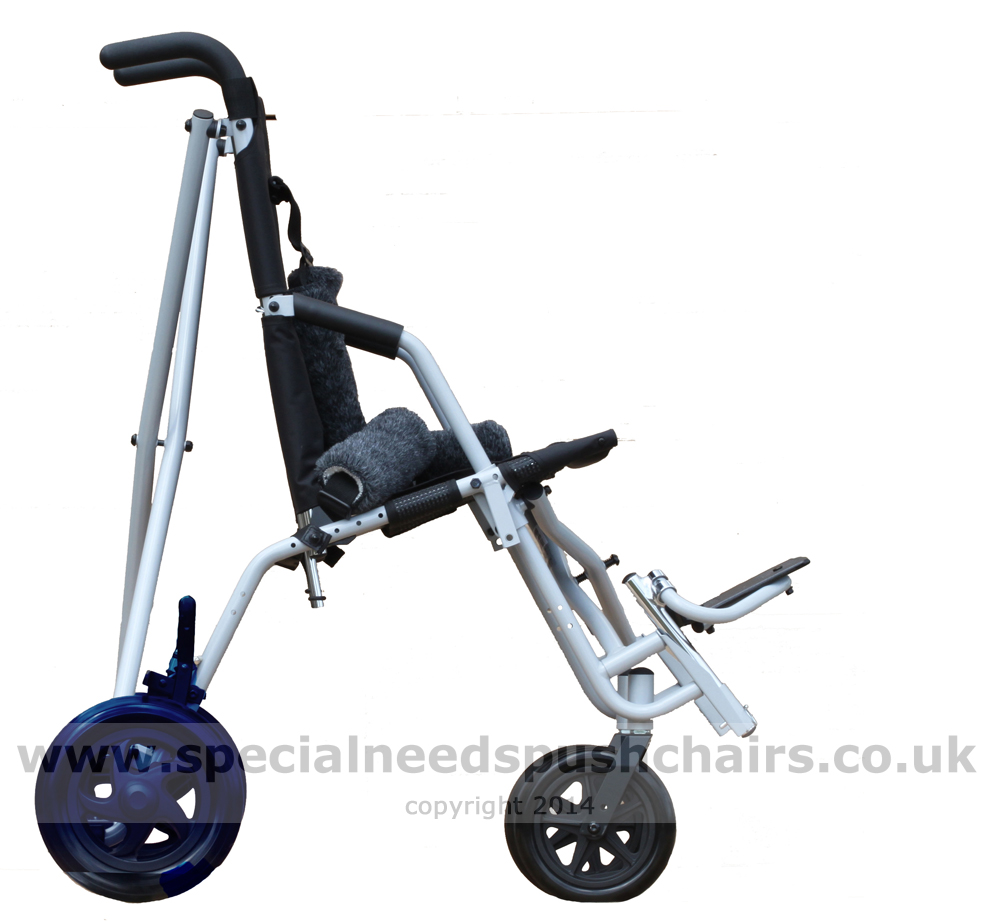

Trotter TR1400 14" Model

Upright



Imperial

Metric

Length

footrest high

37"

94cm

footrest low

45.5"

116cm

Width (inc wheel hubs)

25.5"

65cm

Gap between front wheels

12"

30cm

Handle Height

41"

104cm

Lower Leg (seat to footplate)

High Range

9" - 13"

22 - 33cm

Low Range

18" - 23"

46 - 58cm

Footrest Depth

7.5"

19cm

Seat Height from Floor rear 18" (46cm)



Headroom to Storm Cover 26" (66cm)



Seat Angle Adjustable 15 or 22 degrees



Seat Back to Base Angle Adjustable 85, 90 or 95 degrees



Seat Back Width (between frame)

13.5"

34cm

Shoulder Width (not limited by frame)

15.5"

39cm

Seat Width at Knee

13.5"

34cm

Seat Depth adjustable

min

12"

30cm

med

13"

33cm

max

14"

36cm

Seat Back Height

21"

53cm

Wheel Diameter

Front

8"

20cm

Rear

10"

25cm

Wheelbase



22"

56cm

Weight (approx.)



33lbs

15kg

Maximum Load

100lbs

45kg

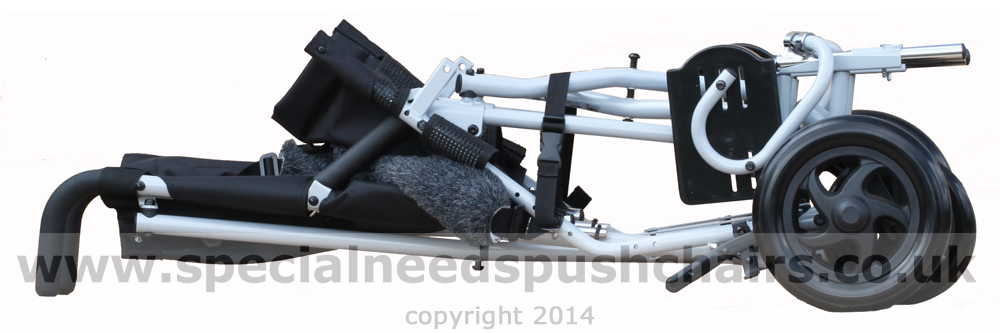

Folded



Imperial

Metric

Length

47"

120cm

Height

13"

33cm

Width

16"

41cm

Weight Footrests Off

29.5lbs

13.5kg

The Trotter is 'crash tested' it is Approved for use in a vehicle subject to the relevant optional accessories being used.

Please note that the specifications listed above are as accurate as is practical to give, they are rounded for ease of presentation and are subject to manufacturers change without Notice. If a particular dimension is critical to you then contact us for an exact figure.

info@specialneedsbuggies.co.uk tel: 01363 881110
